Merlin MicroSeal for Perkin-Elmer GC Injection Ports

MicroSeal Perkin-Elmer

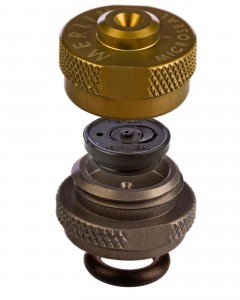

The MicroSeal adapter for the Perkin-Elmer injection ports mounts directly to the port. The MicroSeal nut has the correct autosampler alignment detail.

Recommendations

* Tighten the adapter finger tight to compress the O-ring seal.
* Tighten the MicroSeal nut finger tight only. Do not overtighten.
* Injection port temperature range: 50- 400°C.
* Requires a blunt, cone tip 23-gauge syringe or 23-gauge SPME probe.
* MicroSeal P/N 410 is recommended for most applications (3 – 100 psi).
* Use MicroSeal P/N 310 for lower injection port pressures (1 – 45 psi).
* Use MicroSeal P/N 21-01 for SPME.



Guides

M005 MicroSeal compatible autosampler syringes - Shimadzu, Perkin-Elmer, Varian, Dani
M006 MicroSeal compatible syringes - Manual Injection



Product Numbers

51-12 MicroSeal Kit for Perkin-Elmer ports
(Nut, adapter, O-ring & 2 x 410 MicroSeals)

410 General Purpose Replacement MicroSeal (3 – 100 psi)
310 Low Pressure Replacement MicroSeal (1 – 45 psi)
21-01 SPME Replacement MicroSeal
