Merlin MicroSeal for Varian 1079 and Bruker / Varian 1177 GC Injection Ports

MicroSeal Varian 1079 MicroSeal Varian 1177

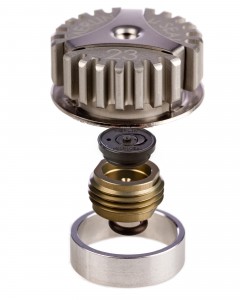

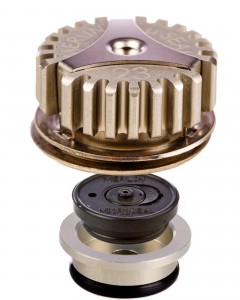

Varian 1079 Adapter & MicroSeal Varian 1177 Adapter & MicroSeal


Separate MicroSeal adapters are available for Varian 1079 and Bruker / Varian 1177 injection ports. The MicroSeal nuts incorporate the microswitch start assemblies.

Recommendations

* Tighten the adapter finger tight to compress the O-ring seal.
* Tighten the MicroSeal nut finger tight only. Do not overtighten.
* Because of syringe compatiblity, the Varian 8200 autosampler is limited to SPME only.
* Injection port temperature range: 50- 400°C.
* Requires a blunt, cone tip 23-gauge syringe or 23-gauge SPME probe.
* MicroSeal P/N 410 is recommended for most applications (3 – 100 psi).
* Use MicroSeal P/N 310 for lower injection port pressures (1 – 45 psi).
* Use MicroSeal P/N 21-01 for SPME.



Guides

M005 MicroSeal compatible autosampler syringes - Shimadzu, Perkin-Elmer, Varian, Dani
M006 MicroSeal compatible syringes - Manual Injection



Product Numbers

21-11 MicroSeal Kit for Varian 1079 ports
(Nut, adapter, O-ring & 1 x 410 MicroSeal)
22-11 MicroSeal Kit for Varian 1177 ports
(Nut, adapter, O-ring, spacer & 1 x 410 MicroSeal)

410 General Purpose Replacement MicroSeal (3 – 100 psi)
310 Low Pressure Replacement MicroSeal (1 – 45 psi)
21-01 SPME Replacement MicroSeal
