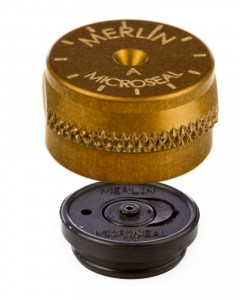

Merlin MicroSeal for Agilent GC Injection Ports

The MicroSeal fits directly onto the septum cup of the Agilent split / splitless injection ports. It only requires a MicroSeal nut.

Recommendations

* Merlin MicroSeal is compatible with all Agilent autosamplers & split / splitless injection ports.
* Tighten the MicroSeal nut finger tight only. Do not overtighten.
* Injection port temperature range: 50- 400°C.
* Requires a blunt, cone tip 23-gauge syringe or 23-gauge SPME probe.
* MicroSeal P/N 410 is recommended for most applications (3 – 100 psi).
* Use MicroSeal P/N 310 for lower injection port pressures (1 – 45 psi).
* Use MicroSeal P/N 21-01 for SPME.



Guides

M002	MicroSeal compatible autosampler syringes - Agilent
M006	MicroSeal compatible syringes - Manual Injection



Product Numbers

304	Low Pressure MicroSeal Starter Kit (Nut & 2 x 310 MicroSeals)
305	Low Pressure MicroSeal Adapter Kit (Nut & 1 x 310 MicroSeal)
404	General Purpose MicroSeal Starter Kit (Nut & 2 x 410 MicroSeals)
405	General Purpose MicroSeal Adapter Kit (Nut & 1 x 410 MicroSeal)
403	MicroSeal Nut for Agilent Ports
410	General Purpose Replacement MicroSeal (3 – 100 psi)
310	Low Pressure Replacement MicroSeal (1 – 45 psi)
21-01	SPME Replacement MicroSeal
