Merlin MicroSeal for Shimadzu GC-2010 and GC-2025 Injection Ports

The MicroSeal adapter kit works with the AOC-20 series and AOC-5000 autoinjectors or manual injection.

Recommendations

* Compatible with Shimadzu models GC-2010 and GC-2025.
* Not compatible with Shimadzu models GC-17 or earlier.
* Compatible with split / splitless (S/S) and S/S Plus inlet systems.
* Compatible with PTV / OCI inlet system in PTV mode only.
* Injection port temperature range: 50- 400°C.
* Requires a blunt, cone tip 23-gauge syringe or 23-gauge SPME probe.
* MicroSeal P/N 410 is recommended for most applications (3 – 100 psi).
* Use MicroSeal P/N 310 for lower injection port pressures (1 – 45 psi).
* Use MicroSeal P/N 21-01 for SPME.



Guides

M005	MicroSeal compatible autosampler syringes - Shimadzu, Perkin-Elmer, Varian, Dani
M006	MicroSeal compatible syringes - Manual Injection
M008	Merlin MicroSeal Adapter Kit (S/N: 61-12) for Shimadzu Inlets



Product Numbers

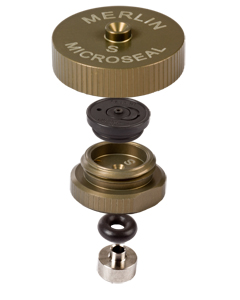

61-12	MicroSeal Kit for Shimadzu 2010 and 2025 ports (Nut, Adapter & 2 x 410 MicroSeals)
410	General Purpose Replacement MicroSeal (3 – 100 psi)
310	Low Pressure Replacement MicroSeal (1 – 45 psi)
21-01	SPME Replacement MicroSeal
